Hollow Rotating Platform
Hollow rotary platform from FS-MOTION with central through-hole for cable and air tube routing, delivers stable indexing rotary positioning, suitable for stations of 3C assembly, lithium packaging, laser processing and medical inspection automation, minor custom mounting dimension & output torque available, free sizing guide & sample support offered.
Detailed Description

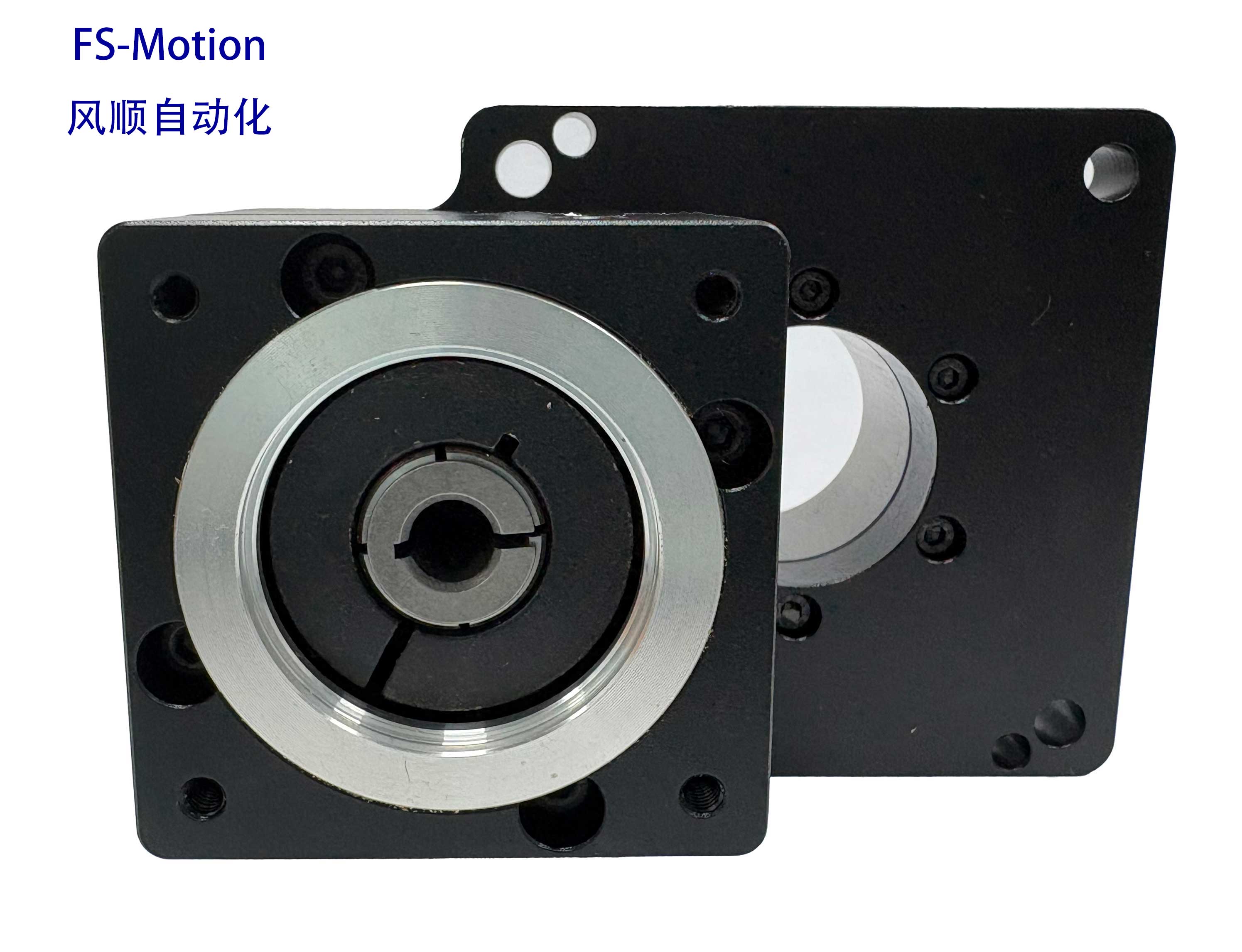

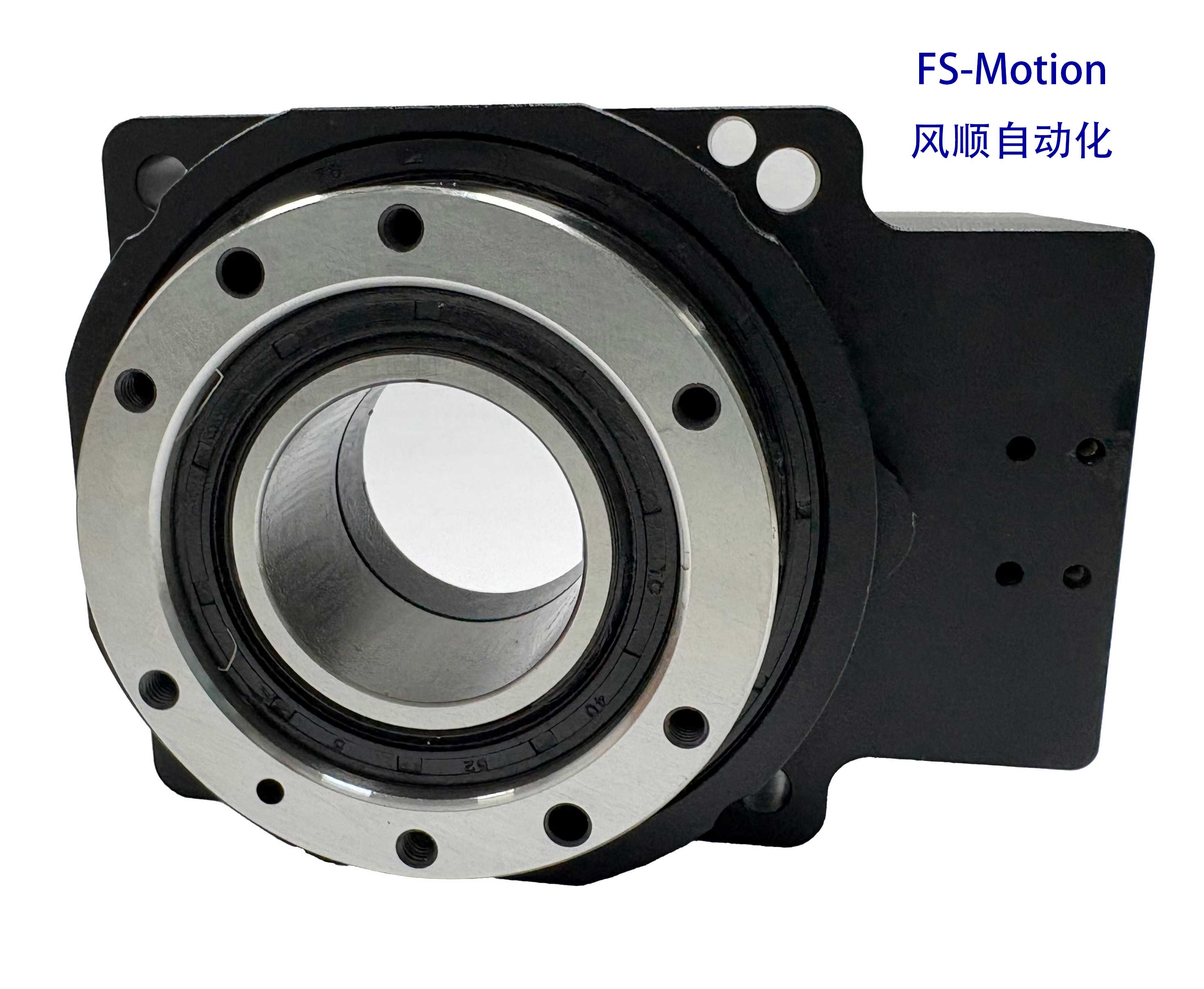

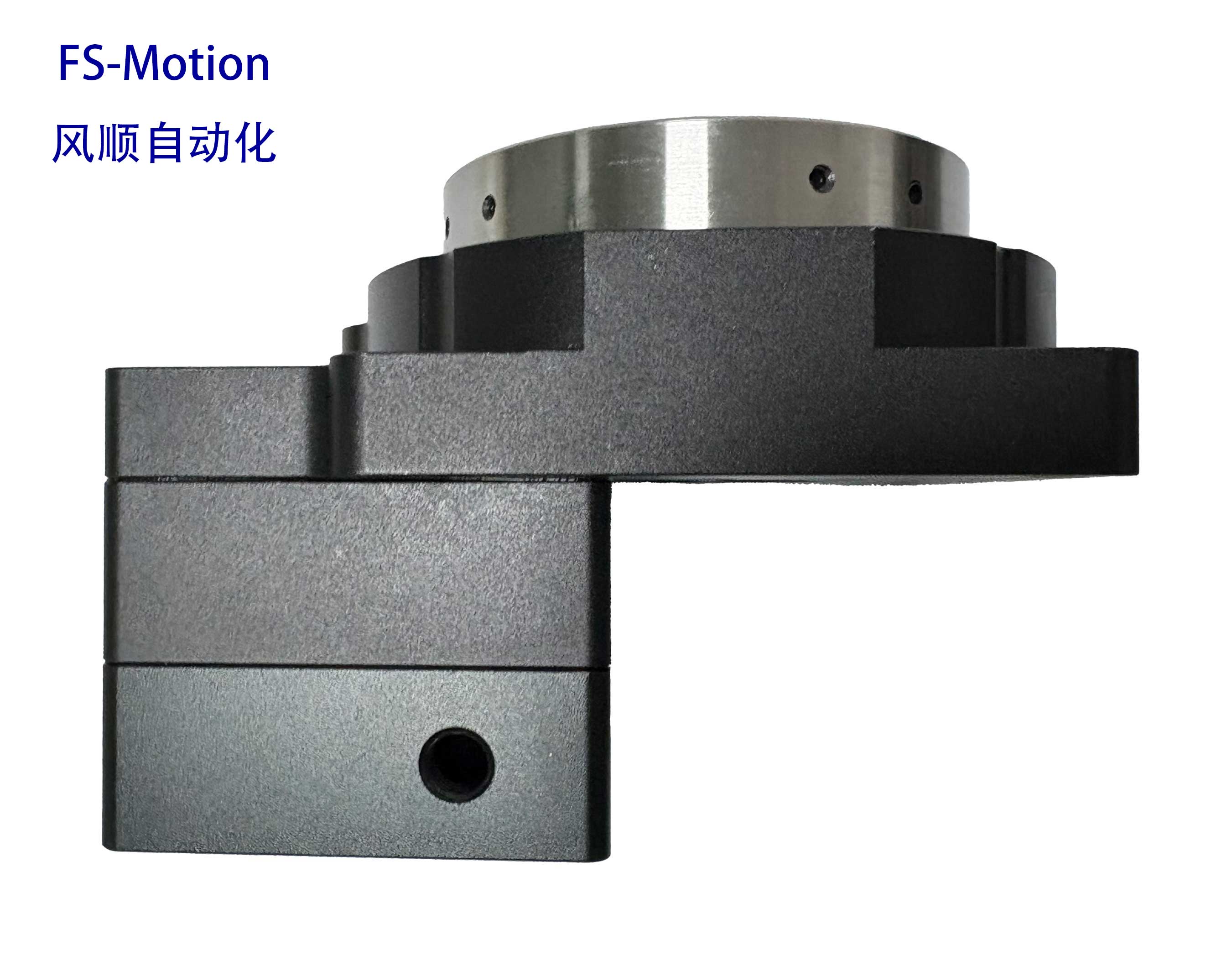

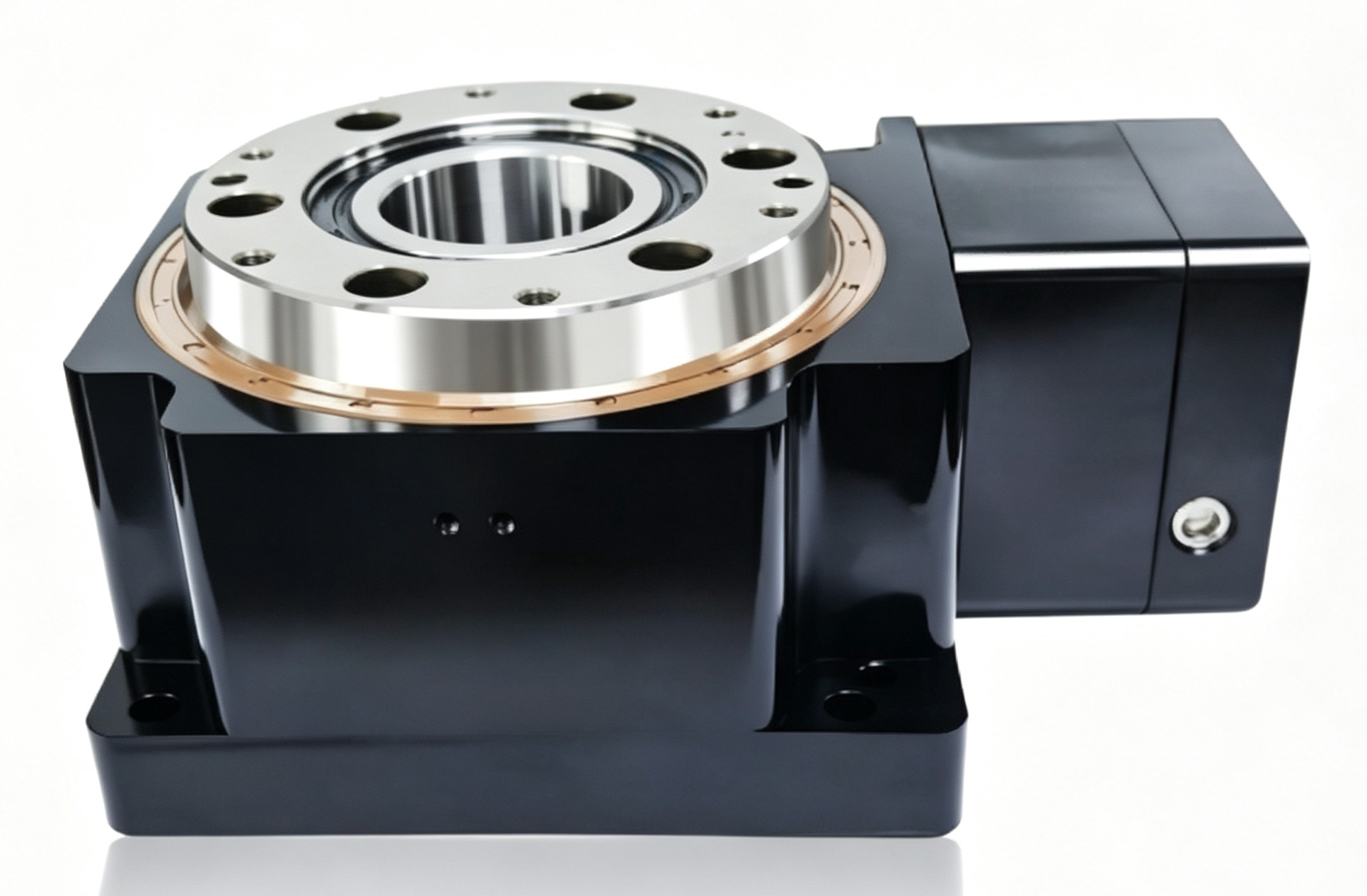

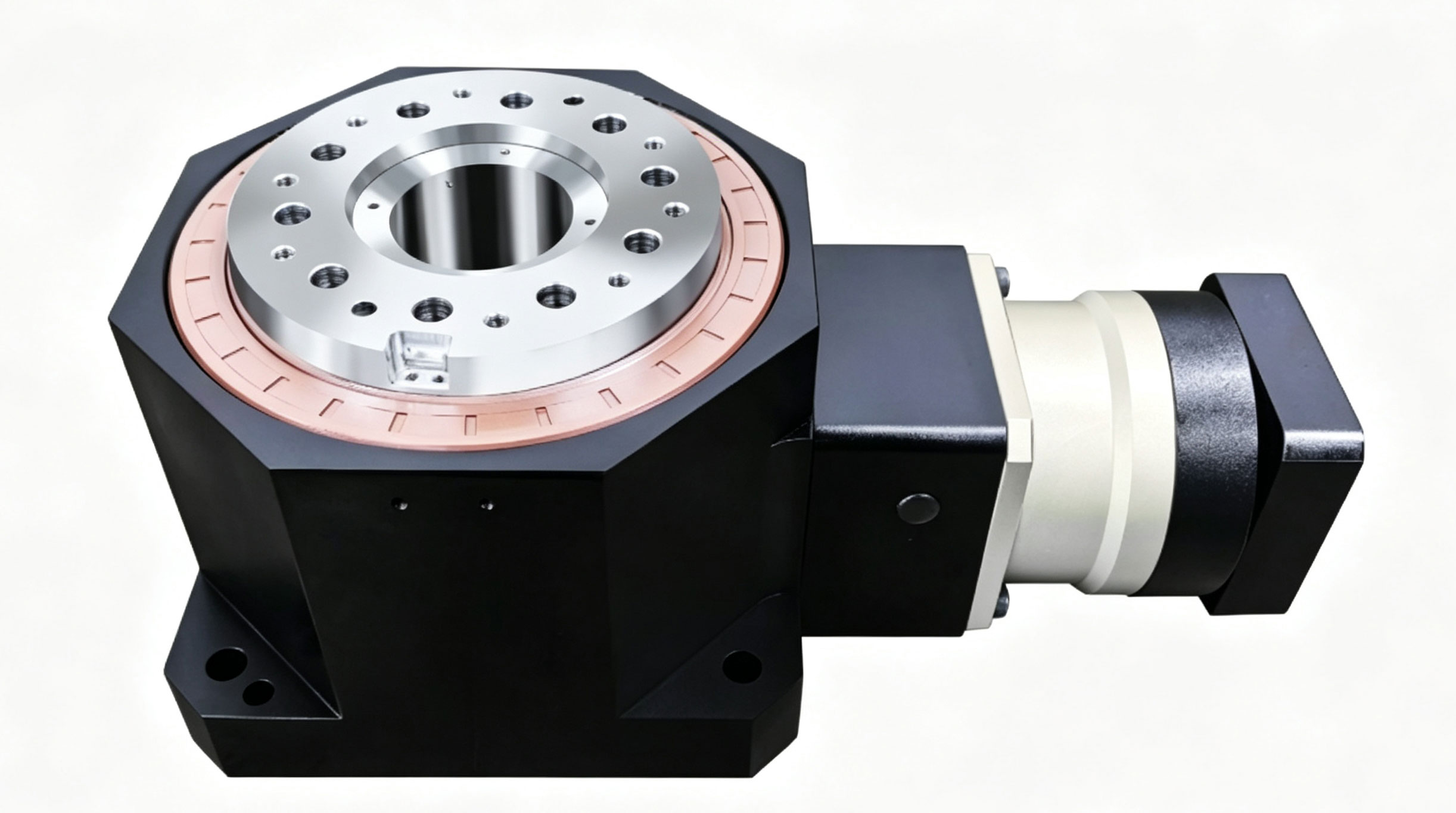

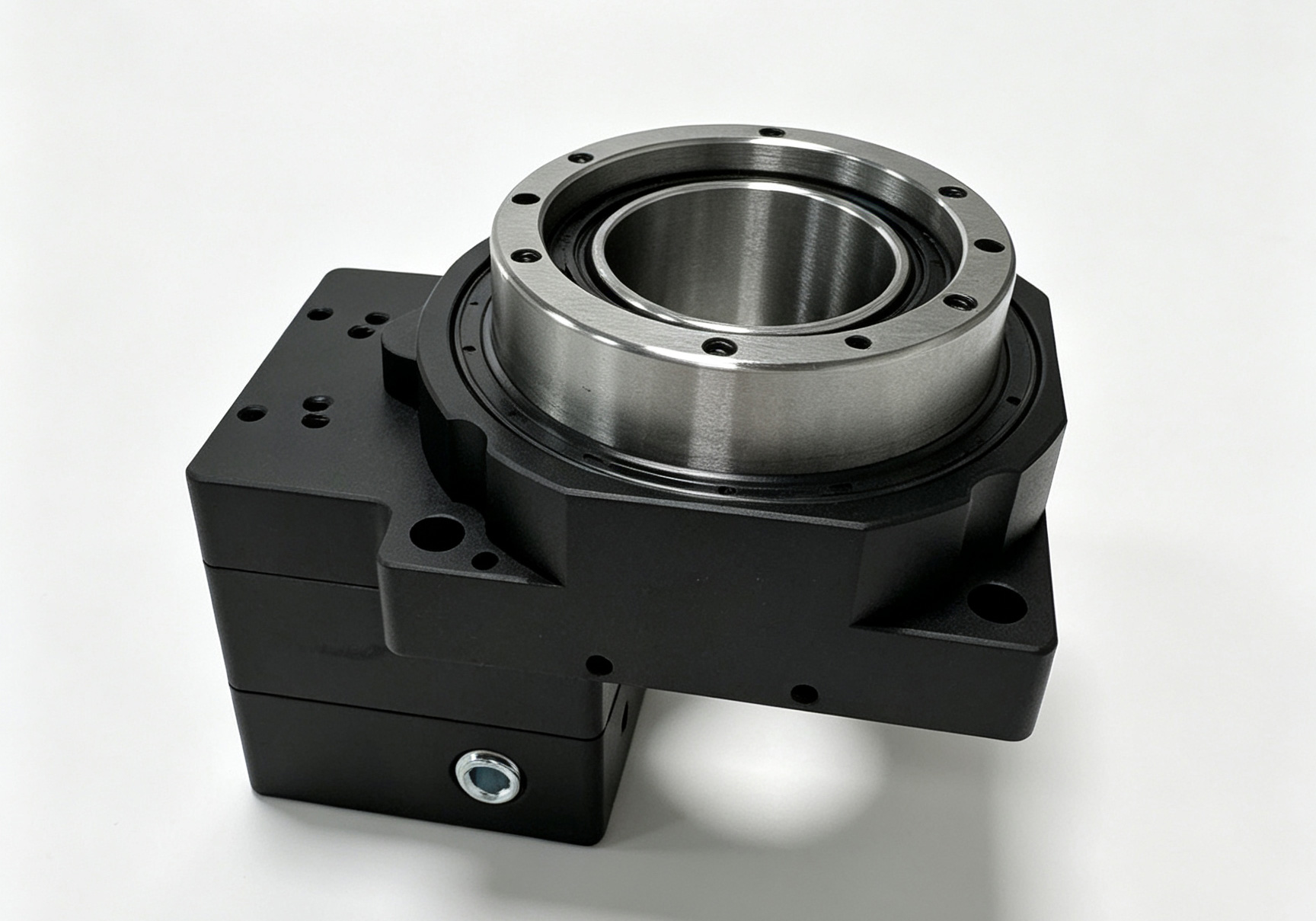

# Hollow Rotating Platform | FS-MOTION Hollow rotating platform is precision indexing transmission component dedicated to automated equipment. It replaces traditional cam indexers and DD direct-drive motors to realize free positioning at any 360° angle without fixed index limits. The whole unit adopts cross roller bearings matched with precision gear transmission to balance stable positioning accuracy and continuous load capacity. A large hollow channel is reserved inside to meet various wiring demands. We launch 6 standard series to cover light load, heavy load, narrow installation, high-speed, low-noise and other working conditions. ## Basic Features of 5 Product Series 1. FS Large Bore (Standard-Model) Series: Low operational deformation, excellent wear resistance. The large diameter hollow hole facilitates cable and air tube routing. 2. FSA Hypoid Gear Series: High rigidity, ample output torque, stable positioning, compact structure with a wide selection of gear ratio options. 3. FSB Heavy Duty Right Angle Series: High load bearing torque, reliable positioning. The right angle layout optimizes and saves equipment installation space. 4. FSC Right Angle Spiral Bevel Gear Series: Integrated large bore hollow body structure, convenient wiring and piping, ideal for compact space installation. 5. FSD Cam Roller Gear Series: Stable positioning, smooth high speed operation, with abundant available specifications. ## Core Product Advantages 1. Full-Range Angle Indexing: Adjustable at any 360° angle to fit multi-station cyclic indexing production processes 2. Integrated Central Hollow Bore Design: Central through-hole simplifies complete machine wiring without extra space reserved for cables 3. Full Coverage of Working Conditions: 6 standard models fit regular equipment demands including light load, heavy load, large bore, narrow space, high speed and low-noise precision 4. Universal Servo Motor Compatibility: Standard mounting flanges fit most mainstream servo and stepper motors on the market, no structural modification required for equipment refitting 5. In-Stock Standard Products: Regular specifications are kept in stock, minor adjustments on gear ratio, output torque and mounting flange size are supported ## Suitable Application Scenarios 3C automatic assembly equipment, lithium battery packaging production lines, medical precision testing instruments, laser cutting & engraving machines, multi-station assembly lines, machine vision rotary fixtures; suitable for automated equipment requiring cyclic indexing, cable routing and stable heavy-load rotary positioning. ## FAQ For Buyer Selection Q1: What practical advantages do hollow rotating platforms have over cam indexers and DD motors? A: It supports free positioning at any 360° angle without fixed index limits; hollow structure simplifies equipment wiring, and it combines the positioning performance of DD motors and load capacity of cam indexers for wider overall compatibility. Q2: Can hollow rotating platforms be customized with non-standard structures? A: Minor adjustments on gear ratio, flange size and torque are acceptable; demands for large overall structural changes can be assessed upon consultation. Q3: Can hollow rotating platforms be matched with servo planetary reducers? A: Yes, all platforms with standard flanges are compatible with our spur and helical planetary reducer series. Complete transmission sets can be selected together with minor adjustable combined parameters. Matching transmission solution: It can be matched with our spur & helical planetary reducers to form complete rotary drive modules for one-stop indexing drive selection, feel free to consult for combined matching parameters. For 2D/3D CAD drawings, professional working-condition selection guides, sample testing or bulk quotation, contact us: WhatsApp: +86 13697420671 Email: info@fs-motion.com
